Model |
Voltage VAC
|
Freq. Hz
|
Current A
|
Power W
|
Speed rpm
|
Pressure mmAq
|
Air Flow CFM
|
Noise dB
|
|
|
Super Speed |
|
|
|
|
|
|
|
|
|
|
A12038-V1SBxP |
115 |
50 / 60 |
0.24 / 0.19 |
16.0 / 13.0 |
2650 / 2950 |
8.8 / 9.8 |
98 / 118 |
42 / 47 |
|
|
A12038-V2SBxP |
220 |
50 / 60 |
0.13 / 0.10 |
16.0 / 13.0 |
2650 / 2950 |
8.8 / 9.8 |
98 / 118 |
42 / 47 |
|
x : T (Terminals) , L (Lead Wire)
多款風機有售，全新原裝正品，歡迎點擊?恒瑞宏晟

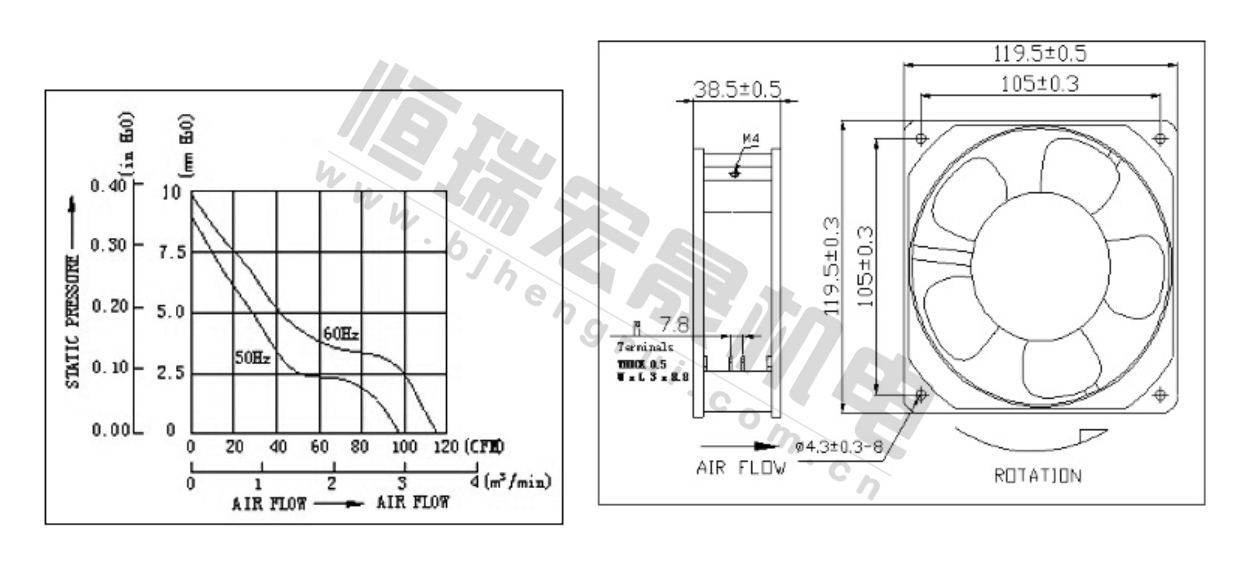

| SIZE | 120x120x38 |
| MATERIAL | Aluminum Housing, Plastic Impeller |
| BEARINGS | Maintenance-Free Ball Bearings |
| MOTOR TYPE | AC shaded-pole motor |
| CONNECTION | Terminals or Lead wire |
| DIELECTRIC STRENGTH | 1800 VAC for 1 Sec. |
| INSULATION RESISTANCE | 100 MΩ min.@500VDC |
| OPERATING TEMPERATURE | -30℃ to +75℃ |
| TYPE OF PROTECTION | Insulation Class B |
| SAFETY | Impedance Protected |
| WEIGHT | |
| ROHS COMPLIANCE | Yes |
多款風機有售，全新原裝正品，歡迎點擊?恒瑞宏晟
通風，散熱，制冷。
